Lawndale (3700W/1600N)
Lawndale Avenue and North Avenue, Humboldt Park

Service Notes:

Humboldt Park Line

Quick Facts:

Address: 1616 N. Lawndale Avenue
Established: July 29, 1895
Original Line: Metropolitan West Side Elevated, Humboldt Park branch
Previous Names: none
Skip-Stop Type: n/a
Rebuilt: n/a
Status: Demolished

History:

In 1895, the Metropolitan West Side Elevated Railroad completed its branch of the Northwest branch to Humboldt Park. The line left the Logan Square line just after the Robey (Damen) stop and went due west just north of North Avenue, passing just north of scenic Humboldt Park. The branch terminated at Lawndale Avenue, although this was intended to be a temporary terminal until the line could be extended further west. Just west of Lawndale station were the elevated tracks of the Chicago & North Western Railroad, which the Humboldt Park branch would need to bridge over to continue -- an expensive proposition. The Met intended to wait until traffic increased until continuing westward, but this never occurred.

The station house was typical of Met designs on the Northwest and Garfield Park branches. The stations were designed by the engineering staff of the Metropolitan company. Constructed of red pressed brick with stone sills and foundations, their vernacular style might best be described as Queen Anne-influenced with some Romanesque features. The station's original design was highlighted by the semicircular bay/portico, a lattice pattern in the brick cornice and extensive terra cotta work including the word "entrance" above one door in the portico and "exit" above the other (although there was nothing to force ingress from one and egress from the other).

The station had a single platform serving one track, with a canopy and railings typical of all Met stations: Designed into the railings were larger cast iron square plates with a stylized diamond design. The stairs and platform were constructed of wood on a steel structure. The platform had a short canopy in the center, covering the stairs and a small waiting area. The canopy frame was iron, with arched latticed supports and bracketed rafters, and hipped roofs of corrugated tin.

The terminal had two additional tracks providing storage for just a few cars. Additional storage was later created by parking cars on one of the main line tracks between Western and California and single-tracking around the cars. With no covered area or shop building, routine car inspections were done outside. Cars needing major work were sent to one of the other Met Division maintenance shops.

The CTA abandoned the Humboldt Park branch on May 4, 1952, citing it as hopelessly unprofitable.

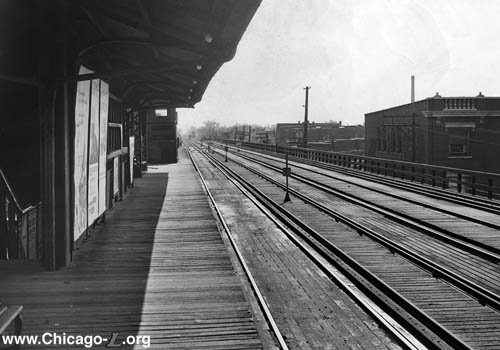

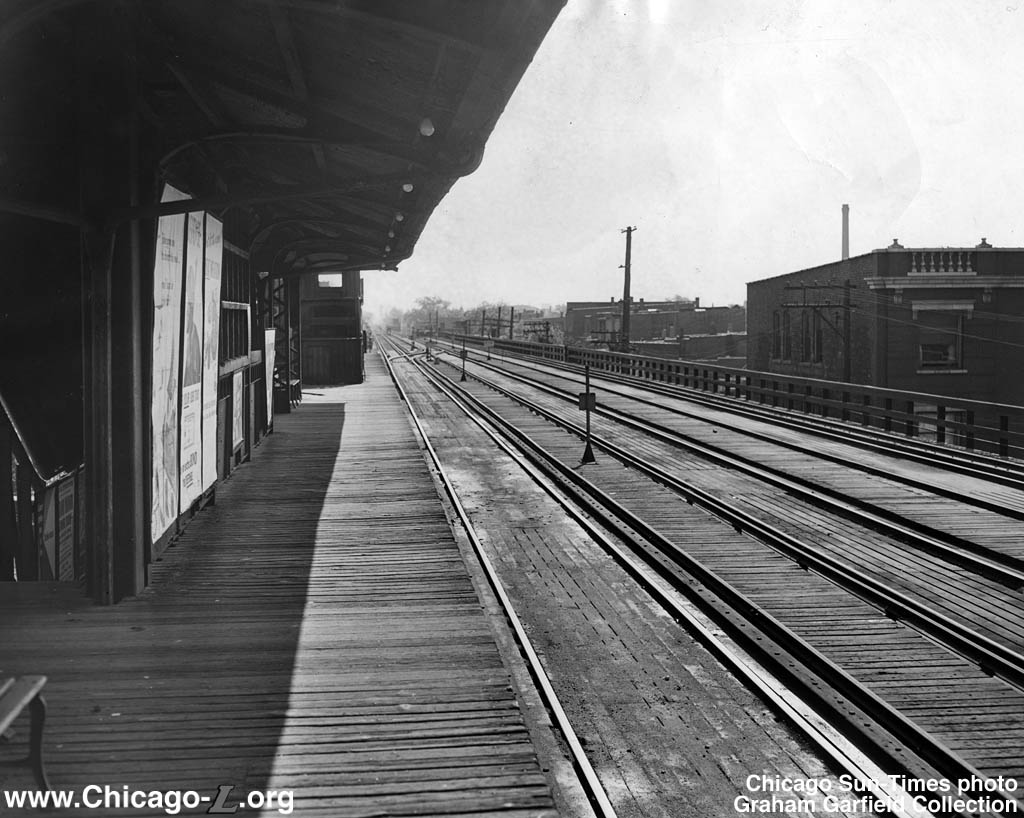

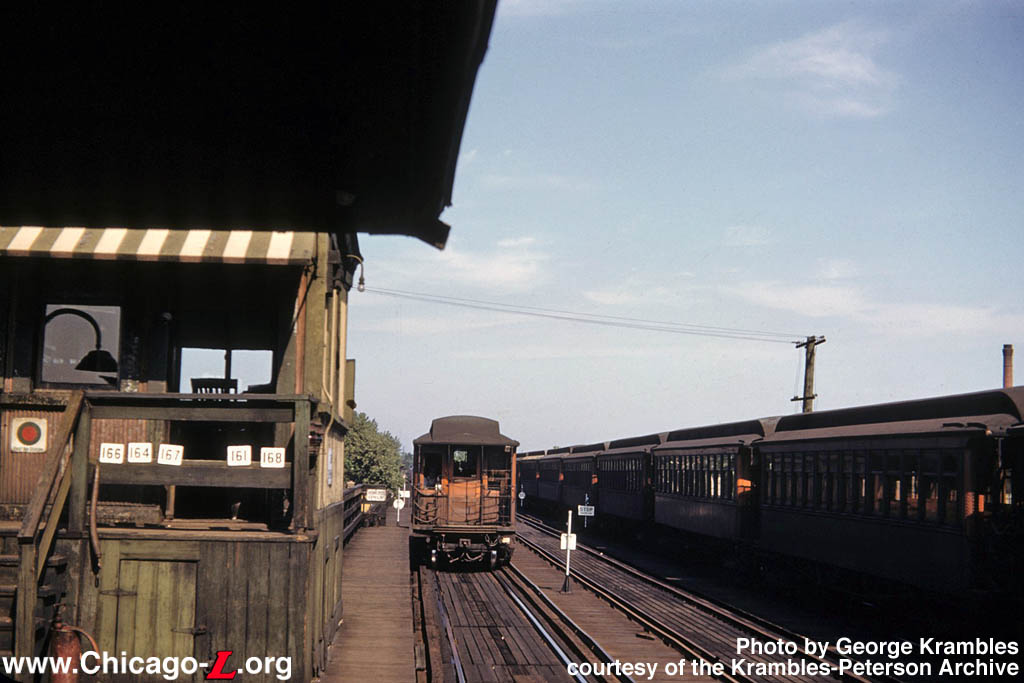

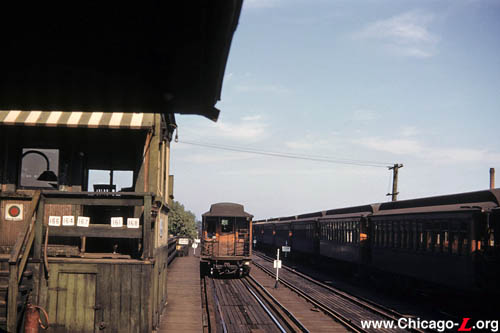

The far east end of Lawndale terminal is seen looking east on August 13, 1950, as an older wooden Westinghouse "L" car (named for the motor/control equipment it was built with), originally built for the South Side elevated, approaches the station. The south track is filled with cars being stored between trips. At the time of the photo, Humboldt Park trains still ran to Downtown in the rush periods, so the cars on the lay up track would be needed to cover the Downtown trips when next operated. There was a building at the east end of the Lawndale platform, visible on the left. It is not totally clear what this building was, but it may have housed the tower to control access to the platform track and the two storage tracks at Lawndale from the main line. By this time, the switches in and out of the platform track were likely spring-and-return switches (not requiring a tower to control them), judging by the the illuminated "STOP caution zone" signs visible in the distance, which regulated movements through spring switches at other shuttle terminals with similar set-ups at Indiana, 42nd Place and 69th. The building may have also housed some sort of remote mini-transportation office, judging by the white run number tags hanging on the railing outside of the building. These run number tags were displayed in the cab window of the "L" by the motorman, allowing a supervisor to know what run he was looking at. It is not known exactly what terminal office functions were housed here, but evidently at a minimum crews reported there, or at least they got their trains there. For a larger view, click here. (Photo by George Krambles, courtesy of the Krambles-Peterson Archive)

.

LawndaleSubstation.jpg (130k) The branch's substation, located near Lawndale Avenue, survived long after the branch ceased operation. This view in 1981 finds the building still largely intact. The substation was down a ways from the Lawndale terminal, the station entrance being on the west side of the street. (Photo by Bruce Moffat)
